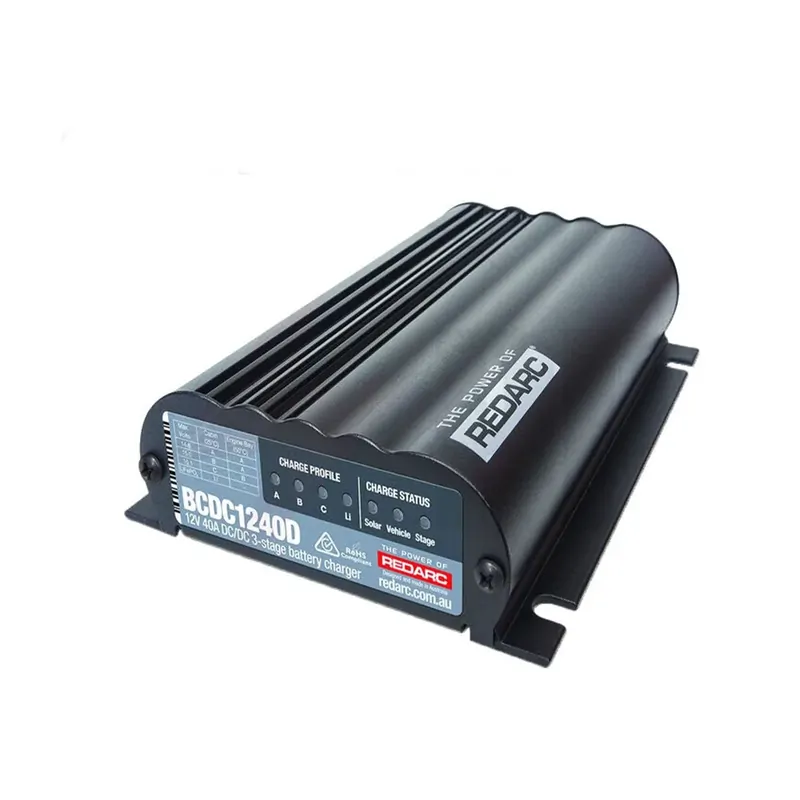

REDARC DC-DC Battery Charger 12V 40A 3 Stage Auto BCDC1240D Dual Input Solar BCDC1240D

REDARC DC-DC Battery Charger 12V 40A 3 Stage Auto BCDC1240D Dual Input Solar BCDC1240D

SKU: BCDC1240D

Call or visit
a store to purchase
Description

REDARC Battery Charger 12V 40A 3 Stage Auto BCDC1240D Dual Input Solar


This REDARC 40A DC to DC Charger(BCDC1240D) is designed to keep your auxiliary battery charged while driving Next generation charging technolgy with aditional features that make it the most advance dual battery charger on the market.

With the Maximum Power Point Tracking solar regulator the unit will draw charge simultaneously from the solar panels and the alternators. Plus, thanks to the built-in 'Green Power Priority' it will select solar charging first in an effort to reduce the load on your alternator.

Three-stage DC to DC charging keeps your auxiliary battery charged at the optimum level, plus it can act as a dual battery isolator to protect your starter battery when the voltage drops below appropriate levels.

The BCDC1240D features the same charging profiles as earlier models, but adds a brand new lithium charging profile to extend its versatility even further by allowing it to charge AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries.

The BCDC1240D is suited for a battery bank sizes over 200AH and suitable for smaller banks of 75-200AH, plus it boasts a wide operating range of 9-32V which will suit all 12V to 24V systems on the market.

The BCDC has tested in all conditions you can find in Australia from extreme heat of the Simpson desert to drenching river crossings at the Cape. The BCDC1240D are built to survice water, dust and vibration.





PICK UP & PHONE ENQUIRIES WELCOME

Despatched within 24hrs of payment being received.



Specifications



  • Output power: 40 amps (max) 600w (max)

  • Input (Operating) Voltage: 9 - 32VDC

  • Output System Voltage: 12VDC

  • Maximum Charging Voltage: 15.3V

  • Output Current Rating (Cont.): 40A

  • Type Approval: E-Mark

  • Input Fuse Rating: 60A

  • Output Fuse Rating: 60A

  • Standby Current Draw: <100mA

  • Output Power: 600W

  • Width (mm): 120

  • Height (mm): 37

  • Length (mm): 165

  • Weight (kg): 1.0

  • Warranty: 2 Years



KEY SPECIFICATIONS
SKU BCDC1240D
Brand REDARC
Shipping Weight 1.000000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
Unit Of Measure ea
Assembled Length 0.120m
Assembled Height 0.037m
Assembled Width 0.167m
PACKAGE CONTENT
