        OCAM Dual Output Driving Light Wiring Harness Kit – Universal 12V

        Power and control your LED driving lights or light bar with a complete 12V wiring solution designed for a cleaner, more straightforward installation.

        The OCAM Dual Output Wiring Harness connects two compatible auxiliary lights to your vehicle’s electrical system. Waterproof DT-style output plugs provide secure connections in exposed engine-bay conditions, while the included high-beam adaptors allow the auxiliary lights to operate with the vehicle’s high beams.

        An illuminated cabin switch gives the driver independent control. When the switch is enabled, the connected driving lights activate with the vehicle’s high beam. Switch it off when auxiliary lighting is not required.

        KEY FEATURES:

        • Dual outputs for connecting two compatible driving lights

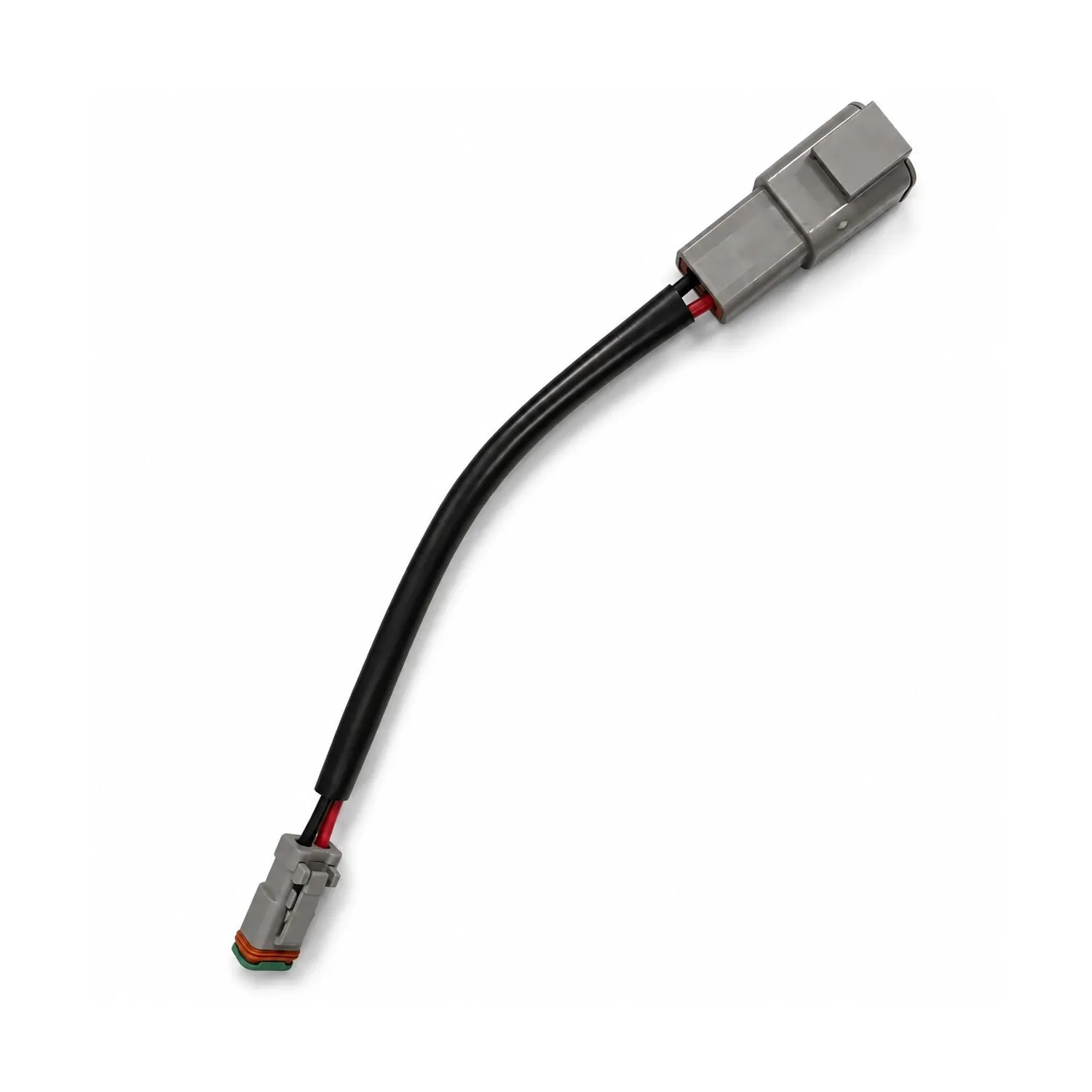

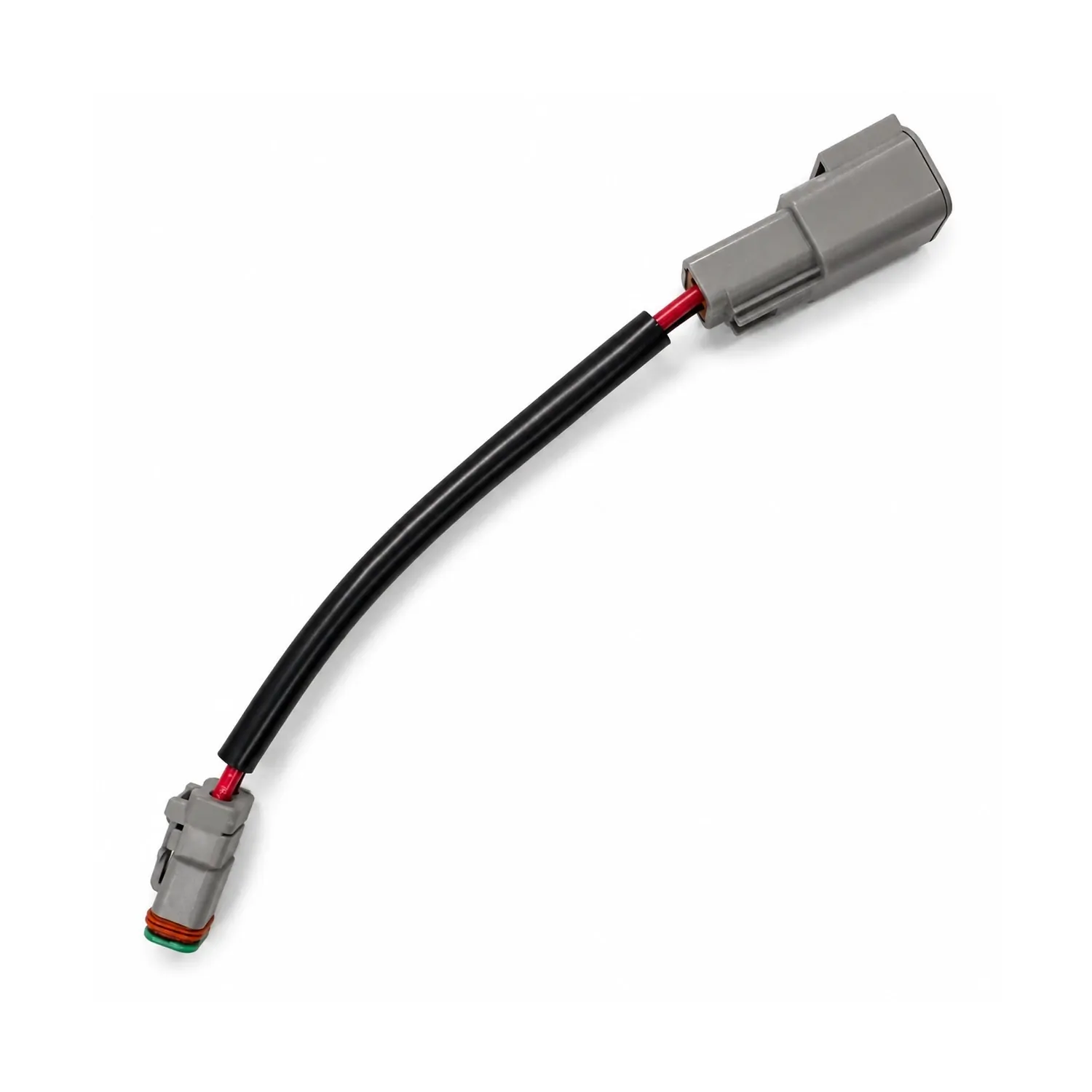

        • Waterproof DT-style output connectors

        • Heavy-duty 12 AWG main wiring

        • 60A automotive relay

        • Replaceable 35A inline fuse

        • Illuminated red cabin switch

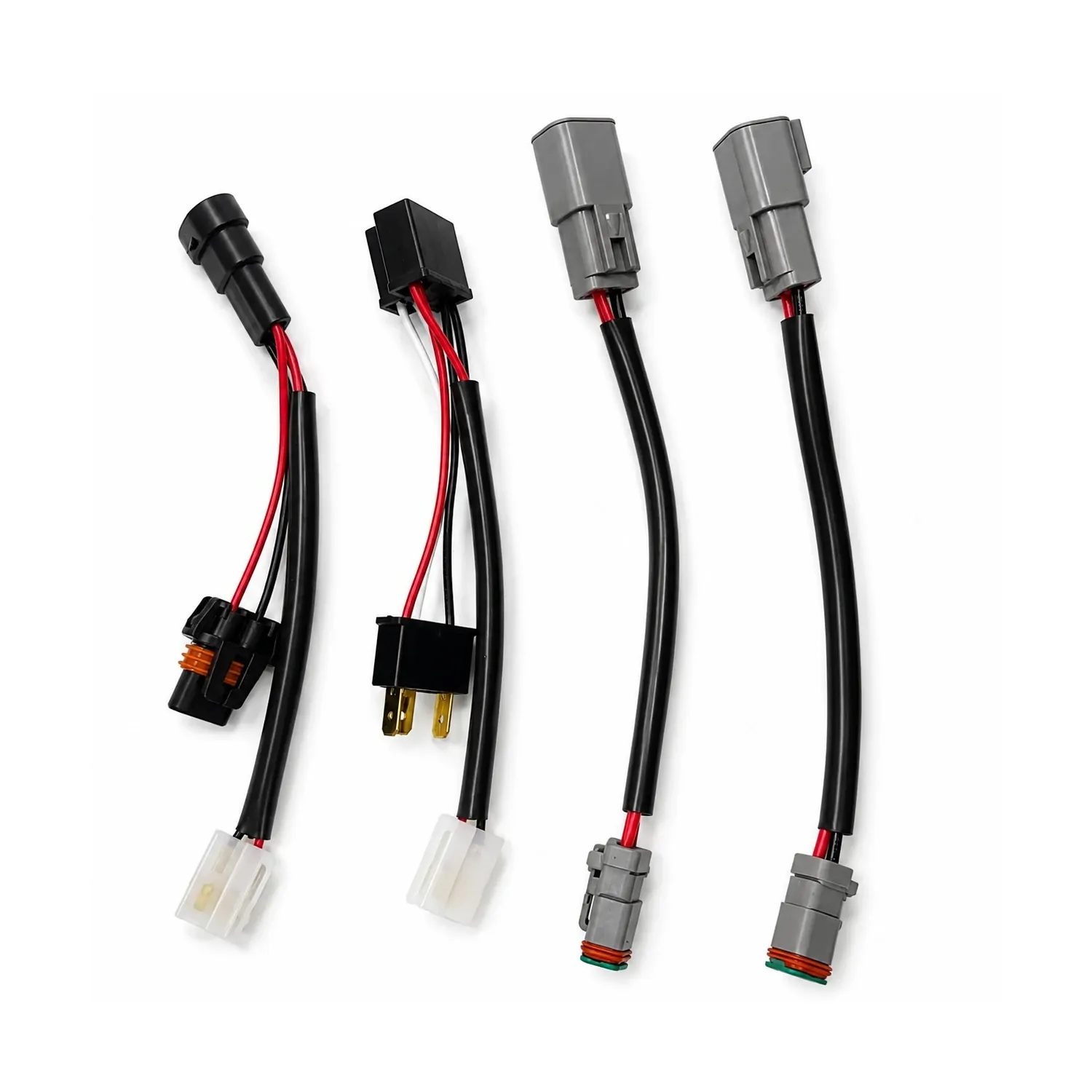

        • H4 and HB3 high-beam trigger adaptors included

        • Colour-coded battery connections

        • Heat- and water-resistant insulation on the main wiring

        • Suitable for 12V vehicle electrical systems

        • Pre-assembled design reduces the amount of custom wiring required

        Automatic High-Beam Signal Detection

        The integrated control relay is designed to recognise both positively and negatively switched high-beam circuits. This allows the harness to work across a wider range of vehicle lighting systems without requiring a separate polarity converter.

        Once installed, the auxiliary lights can only activate when the vehicle’s high beam is operating and the cabin switch is turned on.

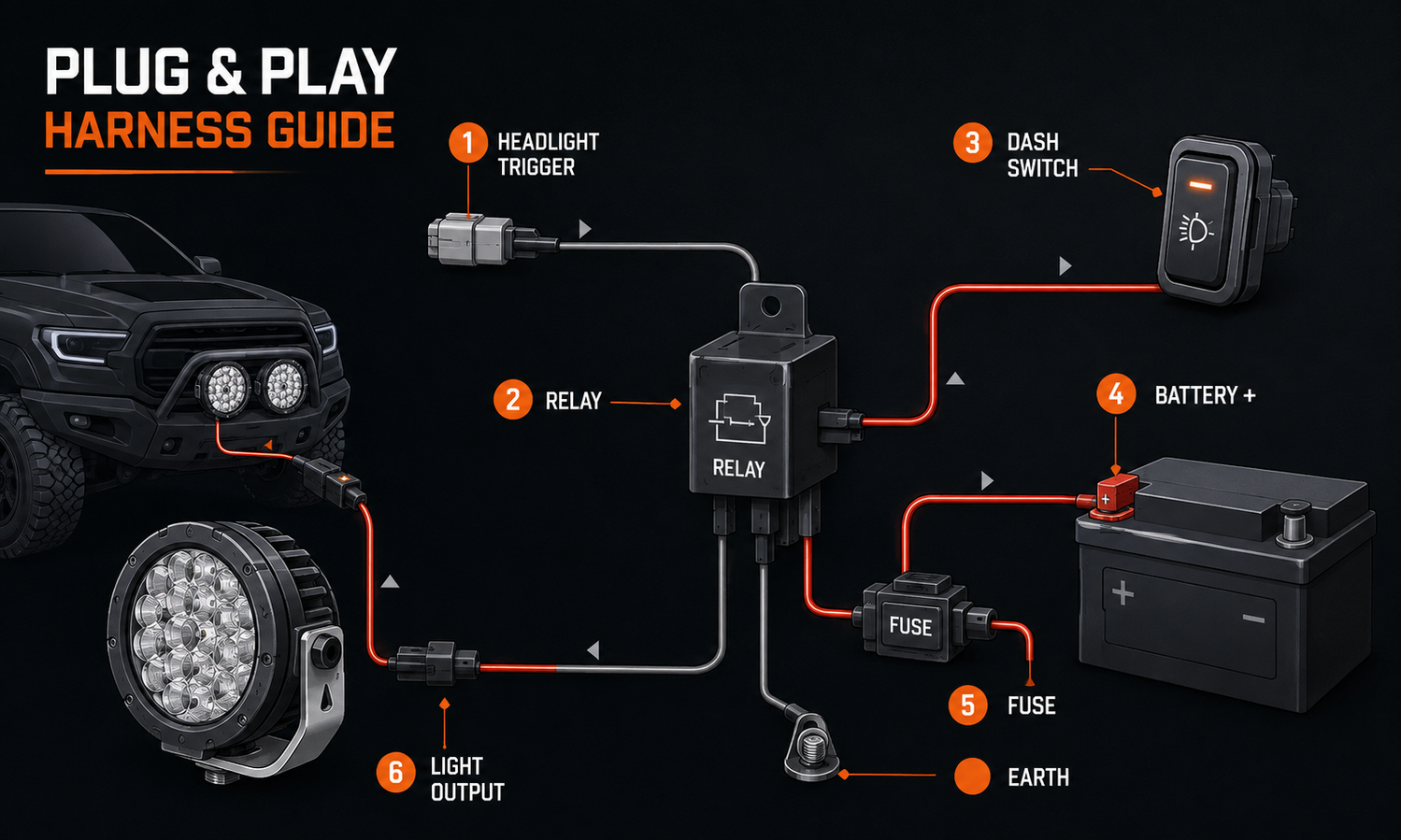

        BASIC INSTALLATION OVERVIEW:

        1. Disconnect the vehicle battery or remove the harness fuse before beginning installation.

        2. Connect the colour-coded power and earth terminals to the appropriate battery terminals.

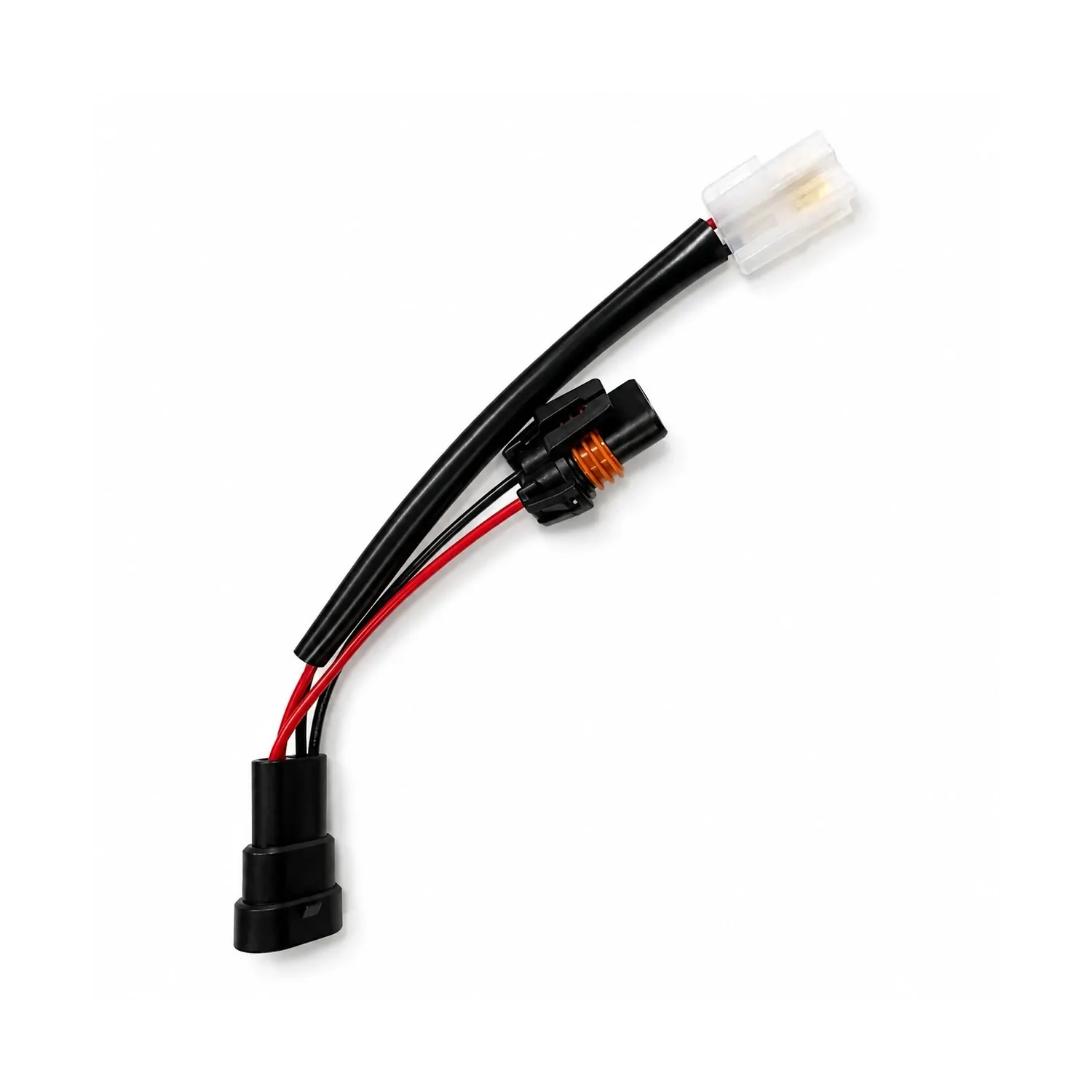

        3. Install the suitable H4 or HB3 adaptor into the vehicle’s high-beam circuit.

        4. Route the switch cable safely through an existing firewall grommet and position the switch within the driver’s reach.

        5. Connect the two DT outputs to the compatible driving lights.

        6. Secure the relay, fuse holder and wiring away from heat, water collection points, sharp edges and moving components.

        7. Reinstall the fuse, reconnect the battery and test the high-beam and switch operation.



        IMPORTANT FITMENT INFORMATION:

        Check your vehicle’s headlight connector and switching system before ordering. H4 and HB3 adaptors are included; vehicles with LED, HID, CAN bus or model-specific headlight assemblies may require an additional compatible high-beam adaptor.

        The connected lights must remain within the electrical capacity of the harness, fuse and relay. Professional installation is recommended if you are unfamiliar with automotive electrical systems.



        PICK UP & PHONE ENQUIRIES WELCOME

        KEY SPECIFICATIONS
        SKU DL-Harness-Dual
        Shipping Weight 1.000000kg
        Shipping Width 0.200m
        Shipping Height 0.050m
        Shipping Length 0.200m
        Shipping Cubic 0.002000000m3
        Type 12V Power & Electrical

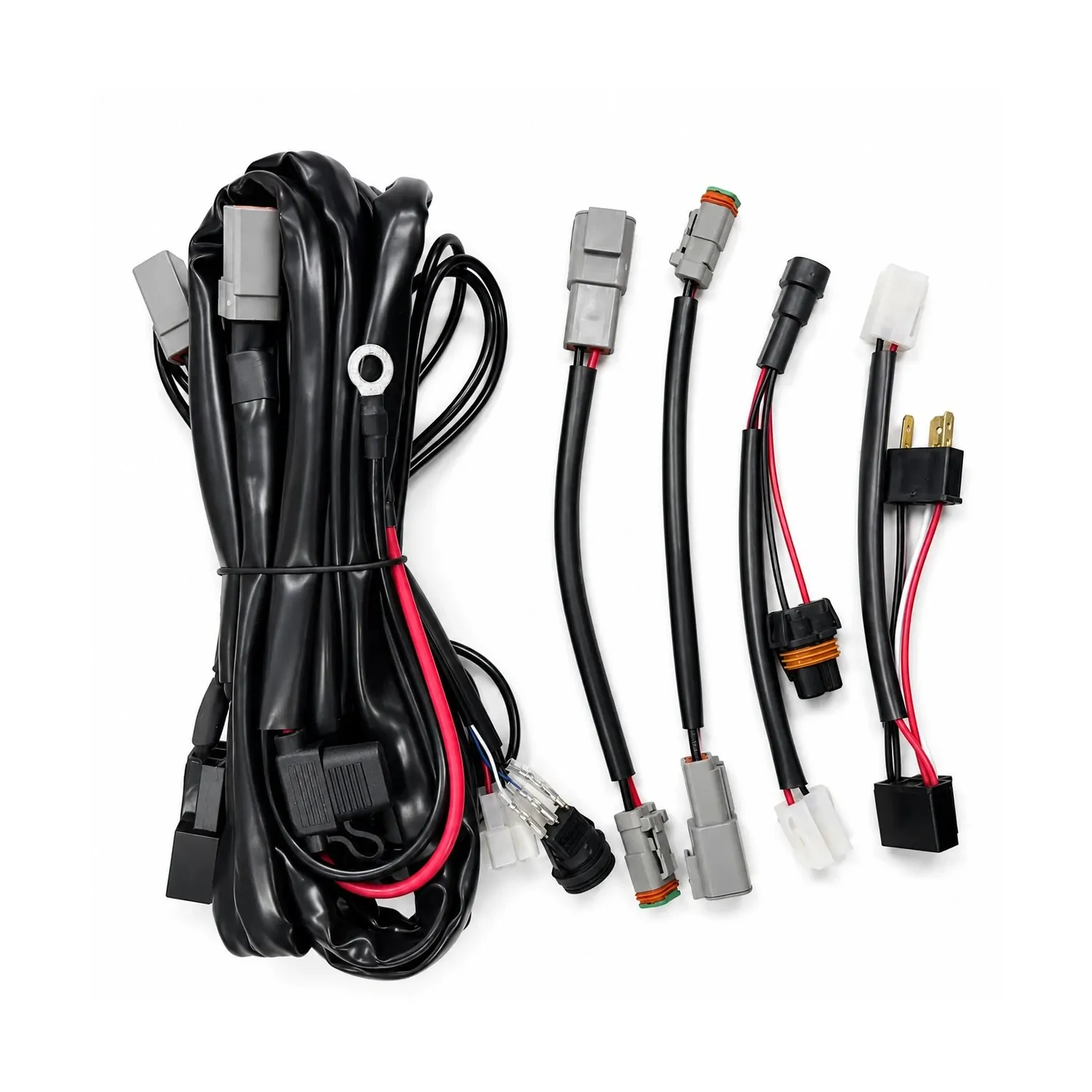

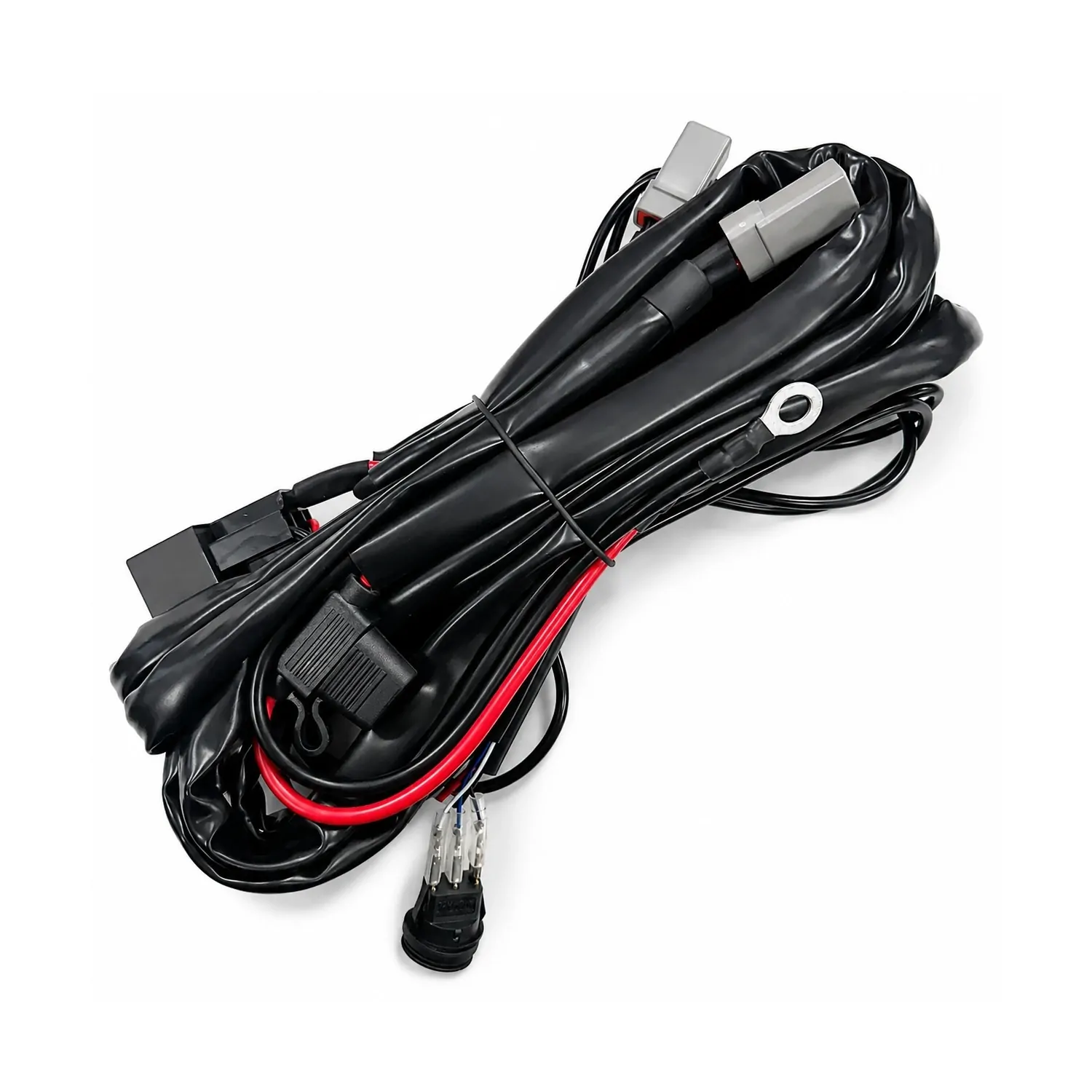

        • 1 × dual-output wiring harness
        • 1 × 60A relay
        • 1 × 35A inline fuse
        • 1 × illuminated cabin switch

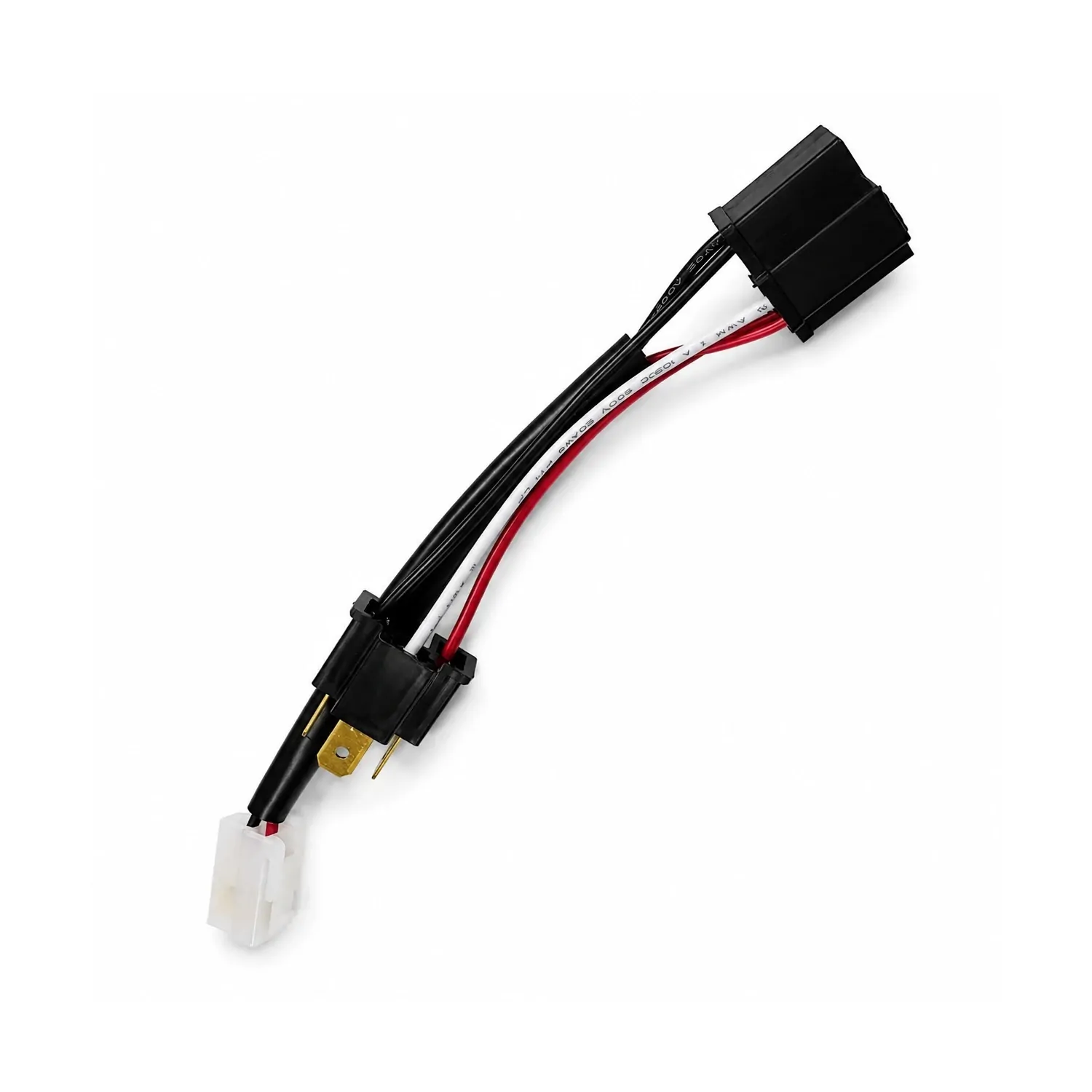

        • 1 × H4 high-beam adaptor
        • 1 × HB3 high-beam adaptor
        • Battery and earth connections
        • Two DT-style light output connectors
