PICO Plus BATTERY MONITOR Black Panel Mount Pico+
View PDF brochure for PICO Plus BATTERY MONITOR Black Panel Mount Pico+

PICO Plus BATTERY MONITOR Black Panel Mount Pico+

Aluminum Battery Monitor, WiFi + Android iOS Apps

SKU: P003

$469.00
group_id: 1
RRP $475.15

PICO Plus BATTERY MONITOR Black Panel Mount Pico+

$469.00
group_id: 1
RRP $475.15

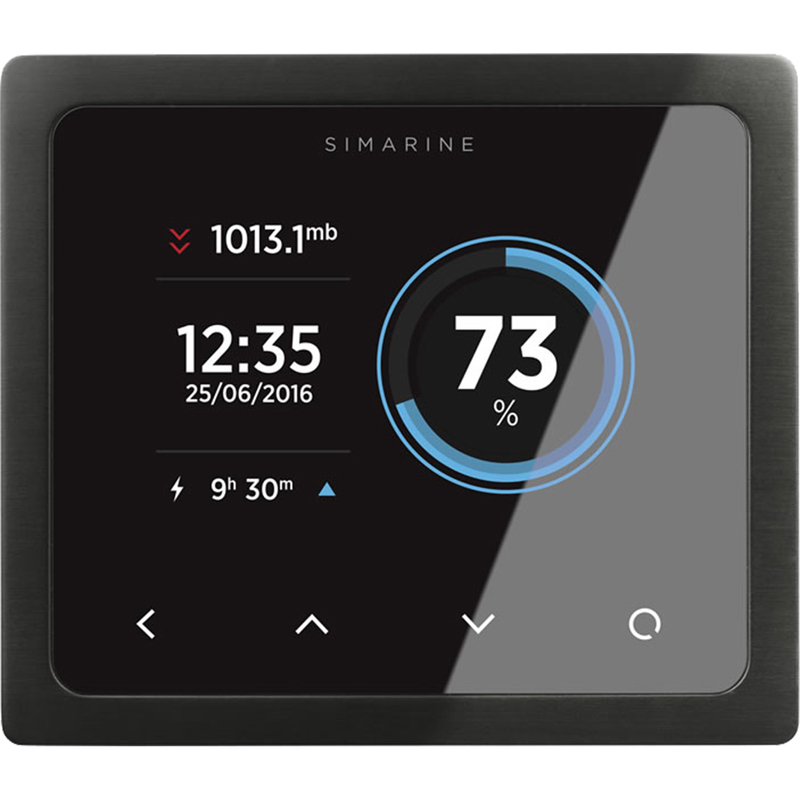

PICO Plus + Black Panel Mount


The PICO Plus provides you with a complete monitoring system for your 12/24 volt battery. It is a high-quality display unit with many connectivity options and it's easy to use.

With this device, you get a simple overview of all the essential details regarding your battery; voltage, current, amp hours, battery capacity in%, battery temperature. Plus, tank levels and temperatures.



PRODUCT FEATURES

  • Sleek anodized aluminium casing
  • Thick Gorilla® Glass with Anti-Reflective coating protecting the optically bonded high-contrast 3.5 inch IPS LCD display.
  • Water and dustproof
  • Can be mounted both indoors and outdoors
  • Screen brightness is automatically adjusted with a light sensor.
  • The device is operated by four water-tolerant CapSense® touch buttons.
  • The (optional) barograph gives precise air-pressure readings, trends, and history.



ADDITIONAL INFO

The 3.5" LCD TFT screen comes with high-resolution IPS technology. It boasts high brightness, optimal colour reproduction, wide viewing angles and a virtually indestructible Gorilla glass with anti-reflection coating.

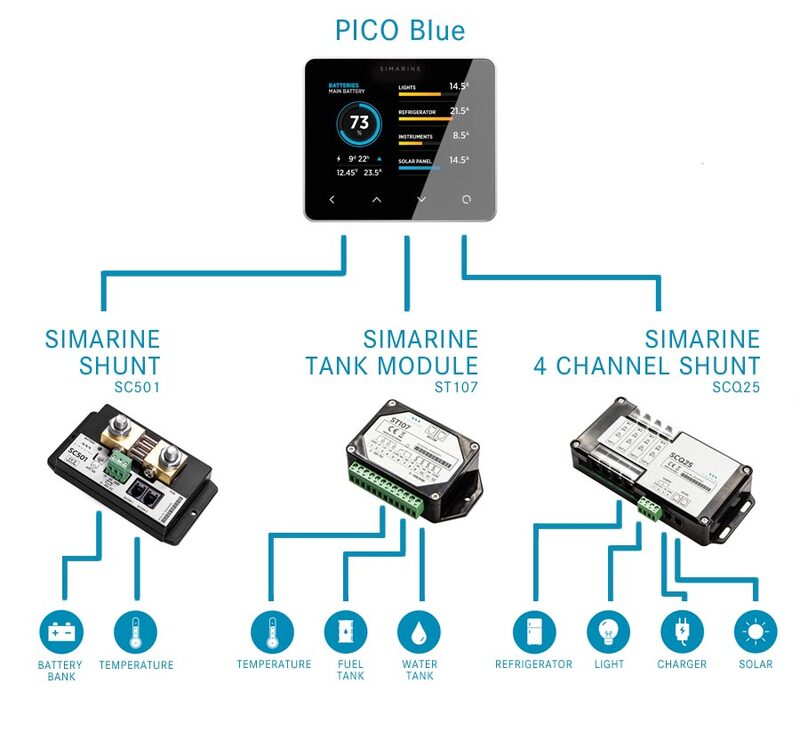

The PICO Blue is suitable for both indoor and outdoor installation. Thanks to special capacitive CapSense® touch buttons, you can easily operate your PICO even with wet fingers. You can also monitor individual loads (refrigerators) or generators (wind generator) via a 4-fold measuring shunt.



Maximum monitoring capability

  • 6 x battery banks with "Real-Time Battery Health ™" (monitors current, voltage and temperature)
  • 6 x battery voltages
  • 14 tank levels or voltage sensors
  • 10 temperatures
  • 24 individual consumer currents or generators
  • 1 inclinometer sensor with pitch and roll readings

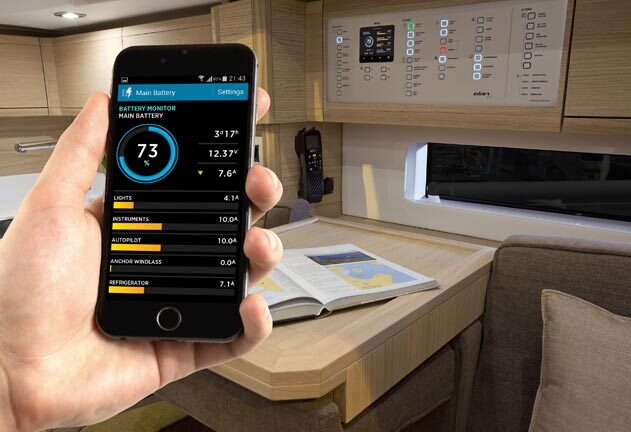

SIMARINE Android and iOS Apps

  • Connect your PICO to your smartphone via Wi-Fi
    • Monitor all battery and tank data​
    • Upload history
    • Edit and restore settings, and
    • Upgrade the firmware with new features

Conveniently monitor the battery from your smartphone and change the settings of your PICO.

The PICO also has a barograph display that determines and displays precise information regarding air pressure and the current trend.



MAKE YOUR BATTERY VISIBLE - Pico ensures precise measurement of voltage, current, and temperature of your battery. It gives you an accurate status regarding your battery's condition, health and many other useful details.

SLEEP MODE - Read your battery charging status, Time to charge, Time remaining without pressing a button.

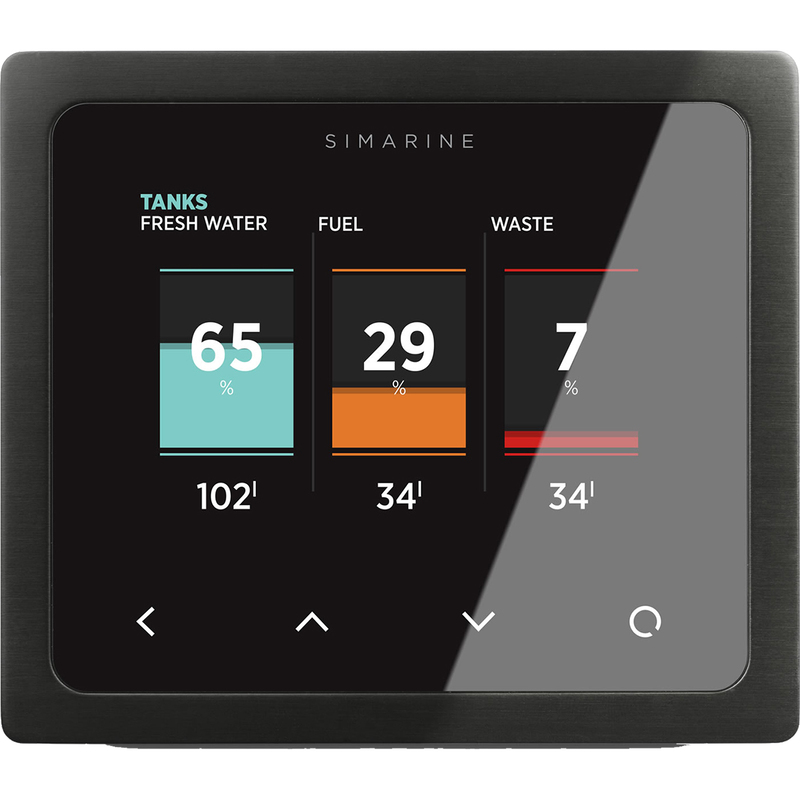

TANK SCREEN - Read your tank levels and receive alerts. You can use your existing tank sensors.


BAROGRAPH SCREEN - Receive information regarding air pressure status, changes and trends.

SETTINGS SCREEN - Pico is quick and easy to set up, you can also set it up via your mobile phone.



NOTES:

When the shunt is mounted in the battery's NEGATIVE line, the state of charge (SOC) of a 12, 24, 36, 48, 60, or 72 volt battery system can be monitored. ONLY with 12 or 24 volt battery systems, the shunt can also be mounted in the battery's POSITIVE line.

In addition to other measuring modules, up to 6 shunts can be connected to the PICO Standard or PICO Blue, which can independently detect the state of charge (SOC) of different battery systems, e.g. of a 12 volt and a 24 volt battery bank.




PICK UP & PHONE ENQUIRIES WELCOME





Basic Specifications:

Display: LCD TFT 3,5” High-resolution IPS, Gorilla Glass, anti-reflective coating
Human interface: 4 Touch buttons, water-resistant
Enclosure: CNC-milled anodized aluminium, water- and dustproof
Dimensions: HxWxD 98 x 83 x 10 mm



Technical specifications

Operating voltage 6 - 35 V DC
Temperature range -10 to +70°C
Power consumption WiFi on, 100% lighting 90 mA
Power consumption WiFi off, 70% lighting 35mA
Power consumption WiFi off, 0% lighting 18mA
Dimensions stand-alone (without connections) 98 x 84 x 10 mm
Dimensions of built-in installation (without connections) 108.5 x 94 x 20 mm
