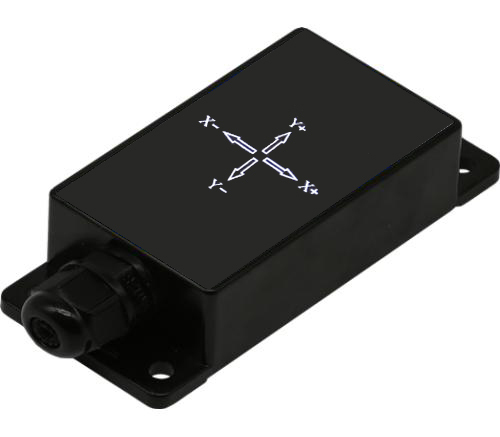

Two Axis Inclinometer Pitch and Roll Sibus Interface IP67

Two Axis Inclinometer Pitch and Roll Sibus Interface IP67

Mems technology IP67

SKU: SDI01

$204.00

Two Axis Inclinometer Pitch and Roll Sibus Interface IP67

$204.00

Two-Axis Inclinometer Pitch and Roll Sibus Interface IP67


Just plugs into Sibus.

Works perfectly with SIMARINE Pico

  • Shows on the screen, and
  • Shows on the Smartphone


Two-Axis Inclinometer to measure "Tilt" and "Roll"

  • Measuring range: -30°~+30°
  • Features: Silicon 3D MEMS sensor
  • Shock resistance>20000g
  • Resolution < 0.001 °


Simple to install with adjustment on the zero "level" in either direction.

This means it doesn't have to be installed on an absolutely flat surface.

It can be easily calibrated once the caravan or motorhome is loaded ready for the big trip!











Parameter

Condition

Min

Type

Max

Units

Measuring range

X axis, Y axis



±30



°

Offset temperature error

0~+70℃



±0.2

±0.3

°

-25~+85℃



±0.4

±0.6

°

Sensitivity temperature error

0~+70℃



-0.8…0.3



%

-25~+85℃



-1.5…0.5



%


KEY SPECIFICATIONS
SKU SDI01
Brand Simarine
Shipping Weight 0.100000kg
Shipping Width 0.050m
Shipping Height 0.030m
Shipping Length 0.030m
Shipping Cubic 0.000045000m3
Unit Of Measure each
