UHF390 Oricom Compact 5w UHF CB Radio

UHF390 Oricom Compact 5w UHF CB Radio

SKU: UHF390

group_id: 1
RRP $299.00

$246.95
Description

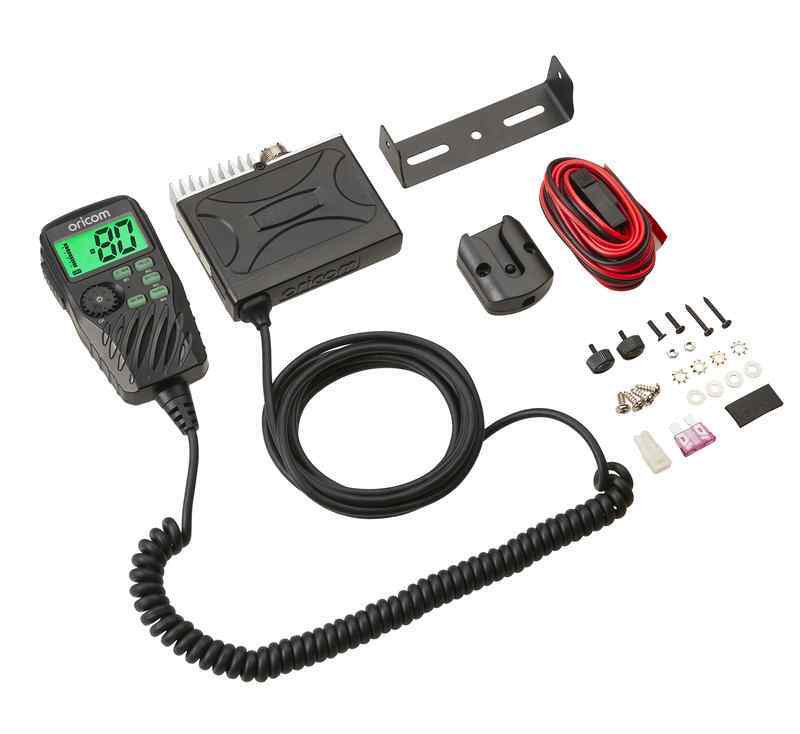

UHF390 Oricom Compact 5w UHF CB Radio

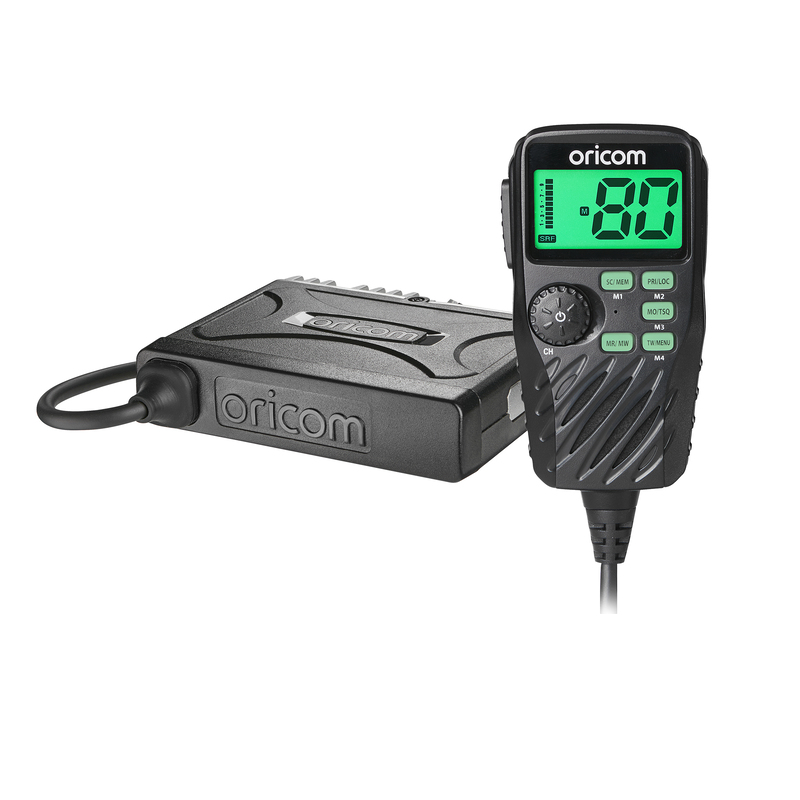

All of the UHF390's radio controls are located in the microphone. There is no need for a head unit to be displayed. With this radio, you'll experience awesome sound quality. The integrated speaker in the controller mic works with the transceiver speaker. Great volume too.



UHF390 Key Features

  • 80 Channels
  • Heavy duty controller speaker mic
  • Ultra compact transceiver
  • Rotary volume and channel knob
  • Wide band scanner (400-512MHz)
  • 5 watt (max TX power)
  • 200 user programmable receive only channels
  • 5 digit Selcall ID with alpha display
  • 38 CTCSS and 104 DCS
  • Duplex (range extender)
  • Open/Instant/Priority Scan

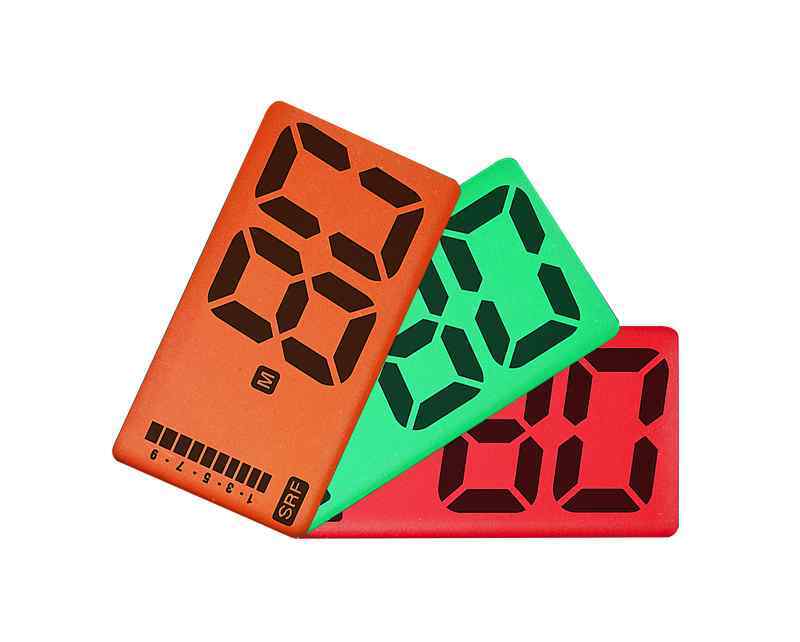

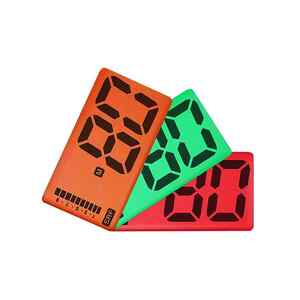

  • Large, easy to read display
  • Includes 5 Year Warranty


Download User Guide


Specifications


UHF390


Compliance
AS/NZS 4365:2011
Frequency Range TX/RX
476.425 - 477.4125 MHz
Number of TX/RX Channels
80 UHF CB (75 Voice Channels)
Channel Spacing TX/RX
12.5KHz
Operating modes
Simplex, Repeater TX offset (+750kHz)
Scanning Speed
130 msec per channel
Antenna Impeadance
50 Ohms
Operating Volts nominal
13.8 VDC
Operating Volts Range
10 to 15 VDC
Over Voltage Protection
Voltage regulator
Over Current Protection
2 Amp fuse
Reverse Polarity Protection
Shunt diode
Frequency Stability
+/- 2.5ppm

Transmitter

RF Output Power
Nominal 5watts
Modulation
F3E (FM)
Maximum Deviation
2.5kHz
Spurious Emissions
< -70 dBm
TX Audio pre-emphasis
+ 6dB/octave from 300Hz to 3kHz
Current Consumption during TX
1.5 Amps with 50 Ohm antenna termination

Receiver

Circuit Type
Direct conversion by Single DSP chip
IF Frequencies
IF = 137MHz
Maximum useable sensitivity
Less than -122dBm at 12dB SINAD
Audio Output Power
3 Watts Maximum
RX Audio de-emphasis
-6dB/octave 300Hz to 3kHz


Mechanical

Transceiver Dimensions
85 (d) x 102 (w) x 27 (h) mm



KEY SPECIFICATIONS
SKU UHF390
Brand Oricom
Shipping Weight 1.000000kg
Shipping Width 0.210m
Shipping Height 0.070m
Shipping Length 0.620m
Shipping Cubic 0.009114000m3
PACKAGE CONTENT
