Xtreme Outback 275mm Sprung Organic Clutch Kit HD for Nissan Navara 2.5L Inc SMF 2010-2015

Xtreme Outback 275mm Sprung Organic Clutch Kit HD for Nissan Navara 2.5L Inc SMF 2010-2015

SKU: KNI28518-1A

$1,560.00
group_id: 1
RRP $1,817.44

Xtreme Outback 275mm Sprung Organic Clutch Kit HD for Nissan Navara 2.5L Inc SMF 2010-2015

$1,560.00
group_id: 1
RRP $1,817.44

Xtreme Outback 275mm Sprung Organic Clutch Kit HD for Nissan Navara 2.5L Inc SMF 2010-2015

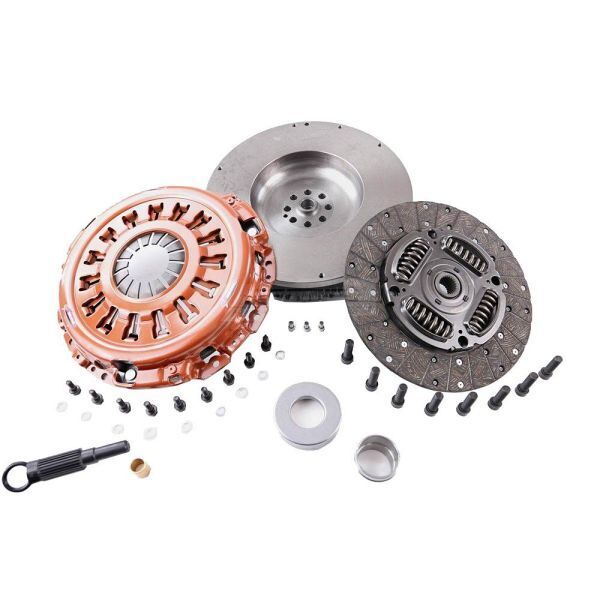

Xtreme Outback Stage 1 heavy duty upgrades are the most popular kits in the Xtreme Outback range. Incorporating a heavy duty pressure plate (Normally 15-40% higher clamping force depending on the application) combined with a sprung organic friction disc, these kits are ideal for vehicles that are regularly used off-road and for towing whilst also being driven everyday. Each kit is developed to offer all of the components required for a successful installation and many also include a single-mass conversion flywheel.

Organic Friction Discs

Organic friction discs are the most drivable options in the range. The discs have been designed to provide great durability and performance whilst offering the best drivability for the street. The discs are ideal for applications such as towing, but are limited in heat capacity so are not recommended for motorsport applications.

Heavy Duty Pressure Plate

Xtreme Outback heavy duty pressure plates have been carefully designed and engineered to ensure significant increases in clamping force whilst also retaining excellent pedal feel. We carefully analyse and test kits to ensure not only the performance when new, but also how the clamping force diminishes over the lifecycle of the product, give our products the edge in performance throughout the life of the clutch.



Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install. Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.



Vehicle Compatibility

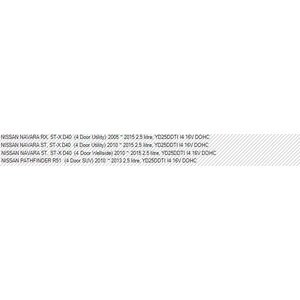

  • 2010-2015 > NISSAN > NAVARA > Diesel 2.5 dCi 4WD (D40T) D40 Ute 140KW



PICK UP & PHONE ENQUIRIES WELCOME

  • Number of Teeth: 24
  • Hub Profile: 25,4x24T
  • Supplementary Article/Supplementary Info: with pilot bearing
  • Supplementary Article/Supplementary Info: with single-mass flywheel
  • Supplementary Article/Supplementary Info: with synthetic grease
  • Clutch: Conversion from dual-mass flywheel to single-mass flywheel
  • Supplementary Article/Info 2: With screw set
  • Max. transferable engine torque [Nm]: 625
  • Friction Lining Outer Diameter [mm]: 275
  • Flywheel Profile: flat flywheel
  • Friction lining material: Organic
KEY SPECIFICATIONS
SKU KNI28518-1A
Brand Xtreme Outback
Shipping Weight 39.000000kg
Shipping Width 0.520m
Shipping Height 0.170m
Shipping Length 0.500m
Shipping Cubic 0.044200000m3
Unit Of Measure ea
