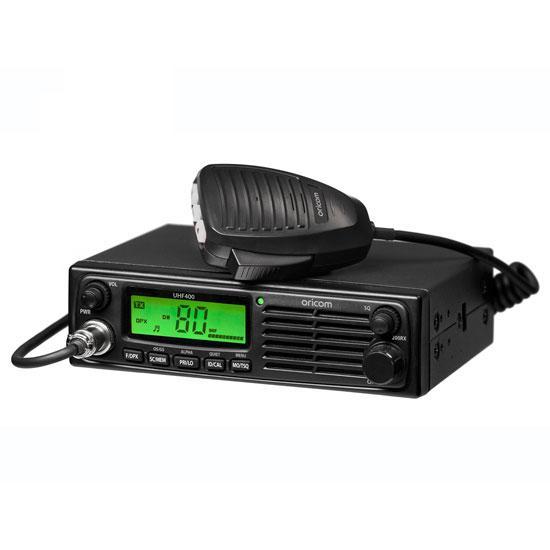

UHF400R Oricom Heavy Duty 5w UHF CB Radio

UHF400R Oricom Heavy Duty 5w UHF CB Radio

SKU: UHF400R

$249.00
group_id: 1
RRP $299.00

UHF400R Oricom Heavy Duty 5w UHF CB Radio

$249.00
group_id: 1
RRP $299.00

UHF400R Oricom Heavy Duty 5w UHF CB Radio





The UHF400R features a 12v/24v auto swithch, which makes it easy to install in any truck, regardless of the power supply. It is especially built for Australian Transport. Through the external heat sink, this unit will ensure you maintain a full 5 watt power output. The tuned sensitivity will also ensure optimal reception.







UHF400R Key Features

  • 80 CHANNELS* Allows you to choose from 80 transmission frequencies (75 voice) to transmit or receive messages
  • 12v/24v Auto Switching For easy installation into any vehicle regardless of power supply
  • Automatic Level Control (ALC) For consistent audio output levels
  • 5 Watt Maximum TX Output Power Maximum transmit power for best possible range
  • 200 Receive Only Channels Allows you to program in other channels in the UHF frequency between 400MHz to 512MHz and monitor transmissions
  • Duplex (Range Extender) Capability Local repeater stations area. This extends the effective range of the radio, giving you the greater reach
  • 38 interference eliminator codes (CTCSS)
  • Block out any unwanted conversations
  • Open/Group/Priority scanning Gives you the option to scan all channels in memory and lock on any active channels or to select the channels you wish to monitor/listen to in a group, along with a priority channel (priority watch)
  • Large easy to read Colour LCD display (green/amber) The keypad and Liquid Crystal Display (LCD) is backlit for easy viewing at night or in low light situations
  • Rugged chassis construction with integrated heat sink The external heat sink cools quickly, ensuring the radio maintains the highest possible output power
  • UHF400R – with rear mic jack


Download User Guide


Download User Spec Sheet


UHF400R


Compliance
AS/NZS 4365:2011
Frequency Range TX
476.425 - 477.4125 MHz
Frequency Range RX
400 - 512MHz
Number of TX/RX Channels
80 UHF CB (75 Voice)

Channel Spacing TX/RX
12.5KHz
Automatic Level Control
For consistent audio output
Operating modes
Simplex, Repeater TX offset (+750kHz)
Selcall ID
5 Digit with alpha display
Scanning Speed
130 msec per channel
Antenna Impeadance
50 Ohms

Operating Volts Range
10 to 30 VDC
Over Voltage Protection
Voltage regulator
Over Current Protection
2 Amp fuse
Reverse Polarity Protection
Series diode
Frequency Stability
+/- 2.5ppm

Transmitter

RF Output Power
Nominal 5watts
Modulation
F3E (FM)
Maximum Deviation
2.5kHz
Spurious Emissions
< -30 dBm
TX Audio pre-emphasis
+ 6dB/octave from 300Hz to 3kHz
Current Consumption during TX
1.6 Amps with 50 Ohm antenna termination

Reciever

Circuit Type
Dual conversion superheterodyne
Intermediate Frequencies
1st IF = 21.4MHz , 2nd IF = 450kHz
Audio output power
3 Watts Maximum
Maximum usable sensitivity
< -123dBm at 12dB SINAD










RX Audio de-emphasis
-6dB/octave 300Hz to 3kHz
Audio frequency response
300Hz to 3kHz
Spurious Immunity
70dB



KEY SPECIFICATIONS
SKU UHF400R
Brand Oricom
Shipping Weight 1.000000kg
Shipping Width 0.210m
Shipping Height 0.070m
Shipping Length 0.620m
Shipping Cubic 0.009114000m3
